Quick Sensor Selection Guide: NTC vs PTC vs RTD vs Thermocouple (2026 Updated) Short on time? Here’s the bottom line for choosing the right temperature sensor:

• NTC Thermistors: Best for low-cost, high-sensitivity in narrow ranges (-50°C to +250°C) — HVAC, medical devices, EV BMS.
• RTDs (Pt100/Pt1000): Choose for extreme accuracy (±0.1°C), linearity, and long-term stability — labs, food processing, pharma.
• Thermocouples: Ideal for extreme temperatures (-200°C to +2300°C), harsh environments, or fast response.
• PTC Thermistors: Primarily for over-current protection and self-regulating switches (not precision measurement).

Temperature measurement drives 70%+ of industrial control systems. From EV battery packs to medical ventilators, picking the wrong sensor can cause failures or safety issues. This ultimate 2026 guide compares NTC vs PTC vs RTD vs Thermocouple based on real engineering trade-offs (drawing from IEC 60751, Steinhart-Hart standards, and industry leaders like DigiKey and AllAboutCircuits). No single “best” sensor — it depends on your range, accuracy, cost, and environment.

At FocuSens, we have spent years engineering custom temperature measurement solutions for global manufacturers. In this master guide, we will dive deep into the working principles, critical specifications, and hidden design pitfalls of the four most common temperature sensors.

1. NTC Thermistors (Negative Temperature Coefficient)

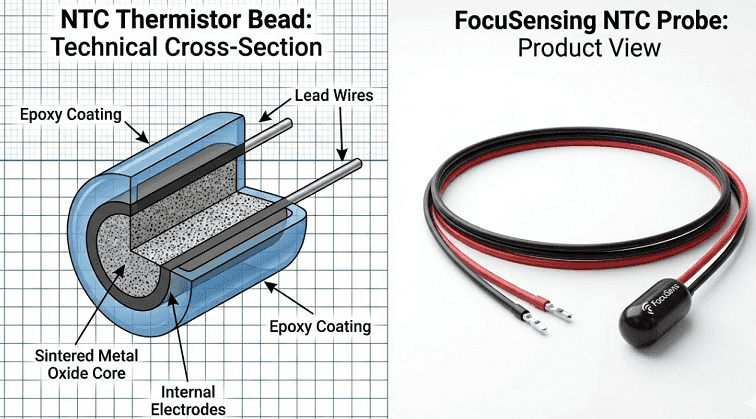

An NTC thermistor is a sintered metal-oxide resistor (manganese, nickel, etc.) whose resistance decreases exponentially with rising temperature. They dominate cost-sensitive applications like HVAC, medical devices, and EV BMS.

Deep Dive: How NTCs Work + Beta Value Formula NTCs follow a non-linear R-T curve. Key parameters:

• R25: Resistance at 25°C (typical 10kΩ).
• Beta (B-value): Measures sensitivity. Higher B = steeper curve.

The resistance-temperature relationship uses: $R_T = R_{25} \exp\left(B \left( \frac{1}{T + 273.15} - \frac{1}{298.15} \right) \right)$ For higher accuracy over wider spans, engineers use the Steinhart-Hart equation (3-coefficient polynomial). Microcontrollers solve this via lookup tables or code.

Pros, Cons & Trade-offs

• Pros: Extremely low cost in volume, high sensitivity (3-5% resistance change per °C), fast response (0.1-10s for bead types).
• Cons: Non-linear (needs linearization), limited range (-50°C to +250°C), self-heating error if excitation current >1mA.
• Engineering Pitfall: Lead resistance has minimal impact (unlike RTDs).

Pro Tip (AllAboutCircuits): For linear output, add a parallel shunt resistor or use voltage-divider circuits.

The FocuSens Edge in Medical & HVAC: When medical device engineers need ±0.1°C precision for skin temperature monitoring, standard off-the-shelf components aren't enough. We manufacture custom NTC Temperature Sensors using highly stable glass-encapsulated beads and biocompatible epoxy coatings. From smart HVAC thermostats to critical patient monitoring, FocuSens delivers custom wire lengths, precise R-T curve matching, and specialized housings.

---

2. PTC Thermistors (Positive Temperature Coefficient)

PTC thermistors increase resistance with temperature — the opposite of NTCs. Most industrial ceramic PTCs function as solid-state switches rather than linear sensors

Deep Dive: The Curie Point Transition

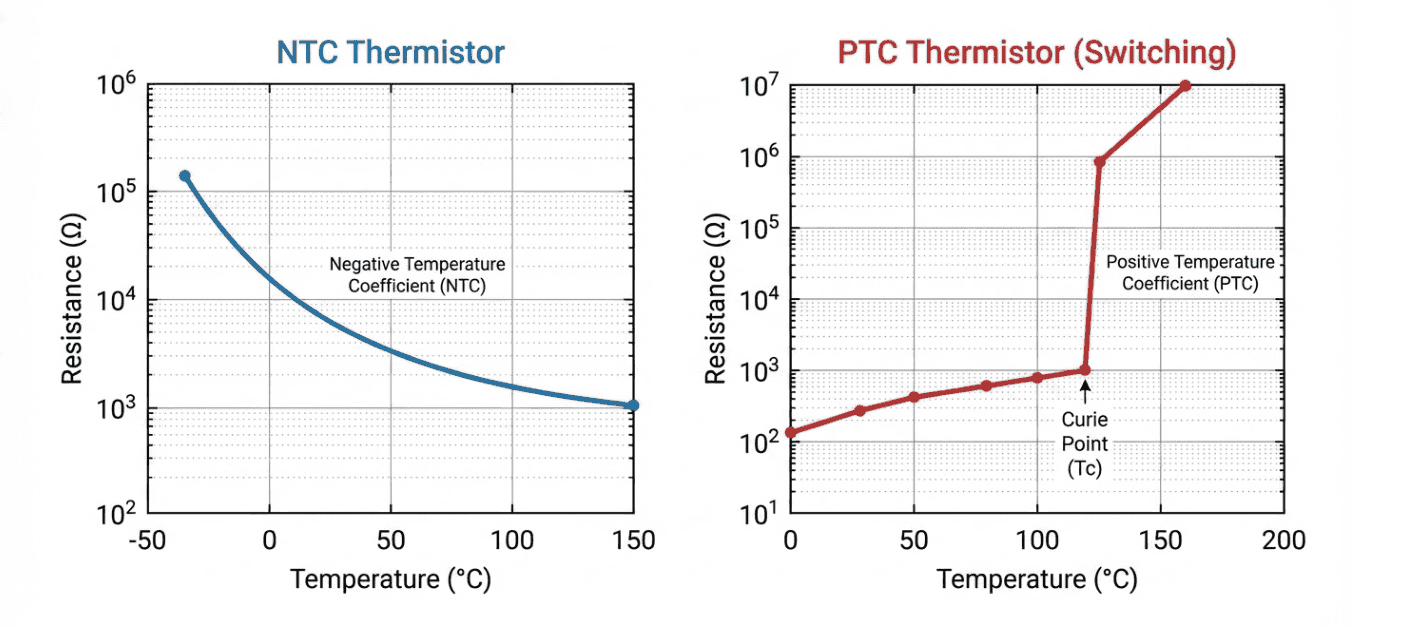

A switching PTC thermistor maintains a relatively low and stable resistance until it reaches a specific, engineered temperature known as the Curie Point (or Switch Temperature). Once this threshold is crossed, its crystalline structure changes, and its resistance violently spikes by several orders of magnitude within just a few degrees.

Deep Dive: Curie Point Transition PTCs stay low-resistance until they hit the engineered Curie Point (switch temperature). Resistance then jumps orders of magnitude in a few degrees due to crystalline phase change.

Why Use PTCs?

• Overcurrent/Short-Circuit Protection: Self-resetting fuse — heats up, resistance spikes, limits current, then resets on cooling.
• Self-Regulating Heaters: Cannot overheat; power self-limits as temperature rises.

Not ideal for precision measurement (limited linear range). Best for motor protection and thermal switches (Ametherm-style safety focus).

3. RTDs (Resistance Temperature Detectors)

RTDs use pure metal (usually platinum) resistance that increases linearly with temperature — the “precision surgeons” compared to NTCs. Pt100/Pt1000 are industry standards.

The undisputed king of the industry is the Pt100 (Platinum element, 100 ohms at 0°C) and the Pt1000 (1000 ohms at 0°C).

Deep Dive: Thin-Film vs Wire-Wound + IEC 60751 Classes

• Wire-Wound: Highest accuracy/widest range (-200°C to +850°C), but vibration-sensitive.
• Thin-Film: Cheaper, faster response, vibration-resistant (modern default up to 500°C).

Accuracy follows IEC 60751:

Class	Tolerance at 0°C	Formula	Best For
AA (1/3 DIN)	±0.10°C	±(0.10 + 0.0017×	t
A	±0.15°C	±(0.15 + 0.0020×	t
B	±0.30°C	±(0.30 + 0.0050×	t

Wiring Challenge: Use 3-wire (Wheatstone bridge) or 4-wire to cancel lead resistance (Pt100 changes only ~0.385Ω/°C).

Pro Tip : Self-heating and drift are minimal vs. thermistors.

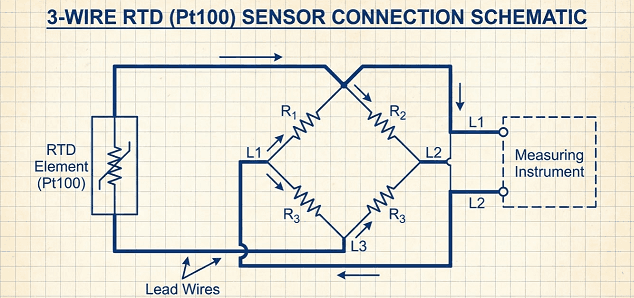

The Wiring Challenge: 2, 3, or 4-Wire?

Because a Pt100 only changes resistance by roughly 0.385 ohms per 1°C, the natural resistance of the copper wires connecting the sensor to your PLC can ruin your reading.

To solve this, industry standards rely on 3-wire (using a Wheatstone bridge to cancel out wire resistance) or 4-wire configurations (providing absolute precision by isolating the measuring current from the voltage reading).

The FocuSens Edge in Process Automation: For food & beverage processors and pharmaceutical plants, sanitation and accuracy are non-negotiable. FocuSens manufactures heavy-duty RTD / PT100 Sensor Assemblies encased in food-grade SS316L stainless steel. We provide customized probe lengths, sanitary tri-clamp fittings, and robust M12 connectors, ensuring Class A accuracy even in high-pressure washdown environments.

---

4. Thermocouples

For jet exhaust, molten metal, or liquid nitrogen extremes, only thermocouples survive

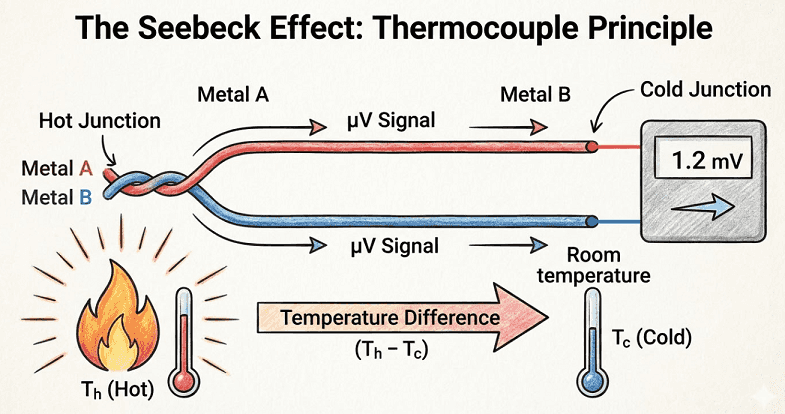

Deep Dive: Seebeck Effect Two dissimilar metals joined at a “hot junction” generate mV voltage proportional to temperature difference.

Common Types (Table for scannability):

Type	Positive	Negative	Range (°C)	Key Traits
K	Chromel	Alumel	-270 to +1260	Most common, oxidation resistant
J	Iron	Constantan	-210 to +760	Low cost, avoid moisture
T	Copper	Constantan	-270 to +370	Cryogenic + moisture resistant

Pros, Cons & CJC Challenge

• Pros: Widest range (up to 2300°C), rugged, fast response (<0.1s exposed junction).
• Cons: Lowest accuracy (±1–2.2°C), needs Cold Junction Compensation (CJC) (extra NTC/IC at connection point).

Pro Tip: Mineral-insulated (MI) cables add vibration/chemical resistance.

The FocuSens Edge in Heavy Industry: Harsh environments destroy standard sensors. We build custom Thermocouple assemblies utilizing Mineral Insulated (MI) cables, which pack the thermocouple wires tightly in magnesium oxide powder inside a metal sheath. This FocuSens design allows the probe to be bent, twisted, and exposed to extreme vibrations in industrial kilns and aerospace testing without failing.

---

Industry Spotlight: Temperature Sensors in EV Battery Management Systems (BMS)

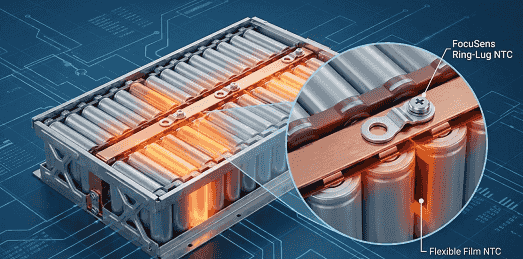

EV lithium-ion packs require 15–35°C tight control to prevent thermal runaway. NTCs dominate (cost + 100+ sensing points per pack + fast response). Flexible film or ring-lug NTCs fit between cells with 4000V insulation.

Ultimate 2026 Comparison Matrix

Sensor	Principle	Range	Accuracy	Linearity	Response	Cost	Best Applications
NTC	Resistance ↓ with temp	-50 to +250°C	±0.1–1°C	Poor (exponential)	Very fast	Very Low	HVAC, medical, EV BMS
PTC	Resistance ↑ sharply at Curie	-50 to +250°C (switch)	Switch only	Poor	Fast (switch)	Low	Motor protection, heaters
RTD (Pt100)	Resistance ↑ linearly	-200 to +850°C	±0.1–0.3°C (IEC)	Excellent	Moderate	Medium-High	Labs, food, process
Thermocouple	Seebeck voltage	-270 to +2300°C	±1–2.2°C	Moderate	Very fast	Low	Furnaces, engines, extreme

4-Step Decision Tree

1. Max temperature? >850°C → Thermocouple; <250°C → NTC/RTD.
2. Budget/volume? High-volume → NTC; low-volume/critical → RTD.
3. Accuracy/drift needed? <±0.15°C zero-drift → RTD Class A; ±1°C OK → NTC/TC.
4. Installation? Battery cells → Film NTC; corrosive → SS316 RTD; vibration → MI Thermocouple.

Partner with FocuSens Correct housing, IP68 sealing, and custom wire (Teflon/PVC) make or break projects. Our team offers free design consultation for your exact constraints. Explore custom solutions today.

The FocuSens Custom BMS Solution

Integrating sensors into a densely packed, high-voltage EV battery module is a severe mechanical challenge. Off-the-shelf components simply don't fit.

FocuSens engineers specialized automotive-grade Digital Temperature Sensor Assemblies designed specifically for EV architecture:

• Custom Form Factors: We manufacture highly specialized housings, including Ring-Lug Terminals that screw directly onto high-current busbars, and Ultra-Thin Flexible Film NTCs that slip seamlessly between cylindrical or pouch battery cells.

• High Dielectric Strength: Safety is paramount. Our BMS sensors are engineered with robust, multi-layer insulation to prevent lethal electrical arcing (up to 4000V AC) between high-voltage battery cells and the low-voltage BMS measurement circuit.

---

The Ultimate FocuSens Comparison Matrix: NTC vs. PTC vs. RTD vs. Thermocouple

Comparison Table

The table below turns the selection logic into a scan-friendly format so the reader can make a decision faster.

Sensor Type	Signal Behavior	Strength	Limitation	Best Use Case
NTC Thermistor	Resistance decreases as temperature rises	Very sensitive, low cost, fast response	Non-linear, needs calibration	HVAC, automotive, battery packs
PTC Thermistor	Resistance increases as temperature rises	Good for protection and self-regulation	Not ideal for precision measurement	Motor protection, thermal switching
RTD	Resistance increases in a predictable way	High accuracy and stability	Higher cost, more wiring complexity	Industrial control, labs, process systems
Thermocouple	Small voltage generated by two metals	Very wide temperature range, rugged	Needs compensation and conditioning	Furnaces, engines, extreme heat

This comparison reflects the same engineering tradeoffs emphasized in DigiKey, NI, and Fluke references: thermistors are strong on sensitivity and cost, RTDs are strong on accuracy and stability, thermocouples are strong on extreme temperature range, and PTC devices are most useful when protection is the goal.

---

The 4-Step Engineering Decision Tree

Still not sure? Walk through these four questions to find your match:

1. What is your extreme temperature limit?

   • Exceeds 850°C (1560°F) ➔ Thermocouple.

   • Under 250°C (480°F) ➔ NTC or RTD.

2. What is your budget and production volume?

   • High volume consumer/automotive (Need to keep BOM low) ➔ NTC Thermistor.

   • Low volume industrial (Failure is not an option) ➔ RTD.

3. What is your required accuracy and tolerance for drift?

   • Better than ±0.15°C accuracy with zero drift over years? ➔ RTD (Class A).

   • ±1°C tolerance is acceptable for the system? ➔ NTC or Thermocouple.

4. Where is the sensor being physically installed?

   • Slipping between EV battery cells? ➔ Flexible Film NTC.

   • Submerged in highly corrosive chemicals? ➔ RTD with SS316L housing.

   • Subject to extreme mechanical vibration? ➔ Thermocouple or Thin-Film RTD.

---

FAQ

Q: NTC vs PTC thermistor? A: NTC for measurement (resistance ↓); PTC for protection (sharp ↑ at Curie point). Q: RTD vs PTC? A: RTD for precision/linearity; PTC only for switching. Q: Thermocouple vs NTC? A: TC for extremes; NTC for cost/sensitivity in narrow ranges.

Partner with the Temperature Experts at FocuSens

Choosing the right sensor technology is only half the battle. Designing the correct housing, selecting the right wire insulation (Teflon, PVC, Fiberglass), and ensuring absolute waterproof sealing (IP68) is where projects succeed or fail.

At FocuSens, you don't just buy parts out of a catalog. Our engineering team works directly with your hardware developers to design, prototype, and manufacture the perfect sensor assembly for your unique mechanical constraints.

Contact FocuSens Engineers for a Free Design Consultation or explore our complete capability in custom Temperature Measurement Solutions today. Let's build something reliable together.
