When it comes to measuring temperature, two common options are thermocouple vs thermistor. Both are reliable sensors, but they work in different ways and are suited to different applications. At Focusens, we specialize in high-quality temperature sensors, including thermistors, that deliver precise and consistent results. In this article, we will compare thermocouple vs thermistor to help you decide which one is the best fit for your needs.

What is a Thermocouple?

A thermocouple is a type of temperature sensor made from two different metals joined together at one end. This junction generates a small voltage that changes as the temperature changes. The voltage is then measured and converted into a temperature reading.

Thermocouples are widely used in industrial and scientific settings because they can measure extremely high temperatures—up to 2,000°C (3,632°F) or more. They are also durable and perform well in harsh environments.

What is a Thermistor?

A thermistor is a temperature-sensitive resistor. Its resistance changes with temperature, either increasing (in the case of PTC thermistors) or decreasing (for NTC thermistors) as the temperature rises. Thermistors are known for their accuracy and sensitivity in lower temperature ranges, typically from -50°C to 300°C (-58°F to 572°F).

Thermistors are commonly used in consumer electronics, medical devices, and industrial temperature control systems because of their precision and quick response times.

Key Differences Between Thermocouples and Thermistors

To help you understand the differences, let’s compare thermocouple vs thermistor across several important factors:

1. Temperature Range

• Thermocouples: Can handle extreme temperatures, from -200°C to over 2,000°C (-328°F to 3,632°F), depending on the type.
• Thermistors: Operate in a more limited range, typically from -50°C to 300°C (-58°F to 572°F).

Thermocouples are better for high-temperature applications, while thermistors are ideal for low to moderate temperature ranges.

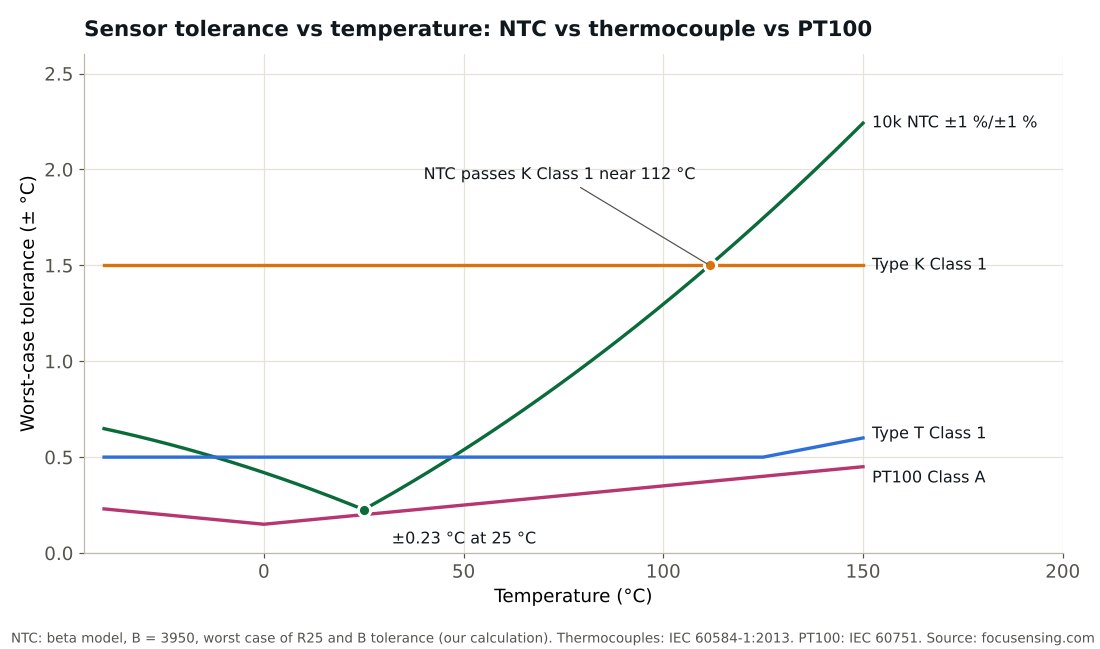

2. Accuracy

• Thermistors: Offer higher accuracy, especially in their specified temperature range. They can detect even small temperature changes with precision.
• Thermocouples: Less accurate compared to thermistors and may require regular calibration to maintain performance.

If accuracy is your priority, thermistors are a better choice.

3. Response Time

• Thermistors: Have a fast response time due to their small size and high sensitivity.
• Thermocouples: Are generally slower but still provide a reliable response.

For applications that require quick temperature readings, thermistors are more suitable.

4. Durability

• Thermocouples: Extremely durable and resistant to high heat, vibration, and harsh environments. They are commonly used in industrial settings and scientific experiments.
• Thermistors: While robust, they are not as durable as thermocouples in extreme conditions.

For tough environments, thermocouples are a better option.

5. Cost

• Thermistors: Usually more affordable and cost-effective for applications requiring high accuracy in a moderate temperature range.
• Thermocouples: Slightly more expensive, especially if you need additional components like amplifiers for signal processing.

Applications of Thermocouples and Thermistors

Both sensors are used across a wide range of industries, but their applications differ based on their strengths.

Common Applications for Thermocouples

• Industrial furnaces and kilns
• Gas turbines
• Chemical processing plants
• Scientific research requiring extreme temperature measurements

Common Applications for Thermistors

• Consumer electronics, such as laptops and smartphones
• HVAC systems to monitor indoor temperatures
• Medical devices like digital thermometers
• Automotive systems to control engine and battery temperatures

Which One Should You Choose?

The choice between a thermocouple vs thermistor depends on your specific needs:

• If you need to measure extremely high temperatures or work in harsh environments, a thermocouple is the right choice.
• If you need high accuracy, quick response times, or are working in moderate temperature ranges, a thermistor is the better option.

For example, industrial plants may prefer thermocouples for their durability, while electronic manufacturers often choose thermistors for their precision and affordability.

Why Choose Focusens for Your Temperature Sensors?

At Focusens, we provide reliable, high-performance temperature sensors tailored to your needs. Whether you need an accurate thermistor for medical devices or a durable thermocouple for industrial applications, we have you covered. Our products are manufactured with precision and tested to ensure consistent performance.

We also offer customization services to meet specific requirements, including unique temperature ranges, sensor sizes, and installation methods. With years of expertise, Focusens is your trusted partner for temperature sensing solutions.

Understanding the differences between thermocouples vs thermistors is essential to choosing the right temperature sensor for your application. Both have their strengths and are suited for different environments and needs. At Focusens, we are here to help you make the best choice with high-quality products and expert advice.
